Low Voltage Panel Mounted APP Capacitor


SHARDA branded LOW VOLTAGE i.e. up to 650volt, are from 5KVAr to 50KVAr in single units and for further range in banking system as per customer requirement. These L. V. Capacitors are of All PP type, oil filled having low loss, longer life and high voltage surge suppression strength. These Sharda branded LOW VOLTAGE capacitors not only reducing Cost of Electricity but also increasing remarkably the Efficiency of the System. LOW VOLTAGE conforms to Indian Standards IS: 2834 – 1986 & IS: 13585- 199

Low Voltage APP Capacitor

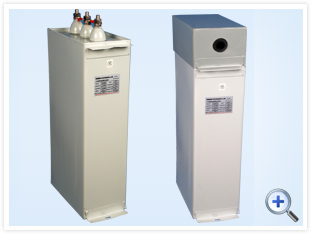

Low Voltage Panel Mounted APP Capacitor
Specification IS:13585/2012  IEC:60931
Impregnant Oil filled
Single Unit Output 5 to 50 Kvar
Banking System Output 60 to 500 Kvar
Rated Voltage 220/415/440/480/525/690 volt.
Connection 1 Phase /3 Phase Delta connected
Frequency 50/60 Hz
Temperature 50◦C
Dielectric Type All PP
Container CRCA/SS /AL.
Installation & Mounting In-door/ Out-door, Panel or floor mounting




Technical Data & specifications :

LOW VOLTAGE APP Heavy duty Capacitor – 440V, 50Hz, 3 Phase

kVAR
Amp.
microfarad
Height (mm)
Length (mm)
Depth (mm)
L1
Weight (kg.)
5
6.56
41.1
260
120
70
60 mm
4.3
7.5
9.84
61.65
270
120
90
60 mm
4.7
10
13.12
82.20
150
230
120
60 mm
7.5
12.5
16.40
102.75
200
230
120
80 mm
8.5
15
19.68
123.30
270
230
120
80 mm
10.2
20
26.24
123.30
290
230
120
80 mm
13
25
32.80
164.36
340
230
120
80 mm
15.8
30
39.37
205.49
380
230
120
80 mm
18
50
65.60
246.59
450
230
120
90mm
25
L1 : Height of Cover.

LOW VOLTAGE APP Super Heavy duty Capacitor – 480V, 50Hz, 3 Phase

kVAR
Amp.
microfarad
Height (mm)
Length (mm)
Depth (mm)
L1
Weight (kg.)
5
6.01
34.53
260
120
70
60 mm
4
7.5
9.02
51.80
265
120
90
60 mm
4.5
10
12.03
69.07
130
230
120
60 mm
7
12.5
15.04
86.34
230
230
120
80 mm
8
15
18.4
103.6
250
230
120
80 mm
10
20
24.06
138.14
280
230
120
80 mm
12.5
25
30.07
172.67
320
230
120
80 mm
15
30
36.09
207.21
350
230
120
80 mm
17
50
60.14
345.34
450
230
120
90
25
L1 : Height of Cover.

LOW VOLTAGE APP Ultra Heavy duty Capacitor – 525V, 50Hz, 3 Phase

kVAR
Amp.
microfarad
Height (mm)
Length (mm)
Depth (mm)
L1
Weight (kg.)
5
5.5
28.87
260
120
75
60 mm
5
7.5
8.25
43.30
265
120
75
60 mm
6
10
11
57.74
370
100
120
60 mm
8
12.5
13.75
72.17
370
120
120
80 mm
9
15
16.5
86.60
370
130
120
80 mm
12.5
20
21.99
115.47
370
160
120
80 mm
15
25
27.49
144.34
370
200
120
80 mm
18.5
30
32
173.21
370
230
120
80 mm
20
50
54.98
288.68
400
230
120
90mm
22
L1 : Height of Cover.
Note: we also supply super heavy duty & Ultra heavy duty capacitors. For more Enquiry/query contact us.

Application:
For Apfc Panel Improving Lagging Power Factor, Peak Load systems where harmonics are present e.g. steel rolling mills etc.

Capacitor Efficiancy ChartFor LOW VOLOW VOLTAGEAGE Capacitors

Motor
(hp)
Speed
(r.p.m)
% Efficiency
Capacitor
Rating
Power Factor
Without Correction
With Correction
Full load
¾ load
½ load
Full load
¾ load
½ load
Full load
¾ load
½ load
20
580
87
87
86
09
0.78
0.71
0.6
0.96
0.96
0.96
50
580
89
90
89
20
0.82
0.75
0.64
0.98
0.97
0.97
75
580
90
91
90
21
0.86
0.81
0.73
0.97
0.97
0.97
100
580
91
91.5
91
27
0.86
0.81
0.72
0.96
0.96
0.96
200
580
93
93.5
93
45
0.89
0.85
0.77
0.97
0.97
0.97
20
720
87
87
86
07
0.82
0.76
0.66
0.96
0.96
0.95
40
720
89
89
88
11
0.86
0.82
0.73
0.97
0.97
0.96
80
720
91
91.5
91
21
0.87
0.83
0.74
0.97
0.97
0.96
120
720
92
92
91
32
0.88
0.84
0.75
0.98
0.98
0.97
200
720
93
93.5
93
50
0.89
0.85
0.77
0.98
0.96
0.98

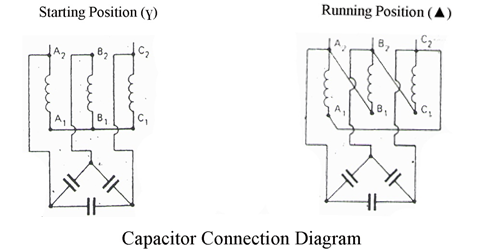

Capacitor Connection for LOW VOLTAGE Capacitors
